| Our company's CNC vertical honing machine has the characteristics of high precision, high efficiency, wide applicability, simple operation and small footprint, which can enable you to achieve good dimensional accuracy, surface roughness, roundness and straightness, improve your processing efficiency, reduce your production costs, and make your products more competitive. | |||||||||
This machine tool is mainly used for high automation requirements and high processing accuracy. The coarse and fine honing process is clamped and completed in one piece, and is also suitable for small-bore-size deep-hole honing.

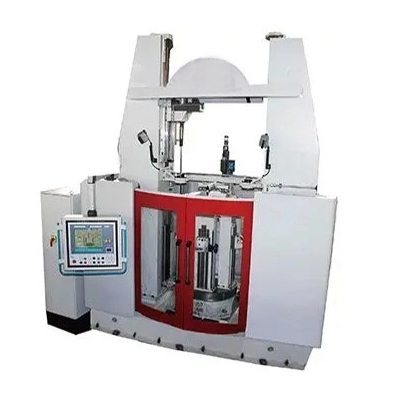

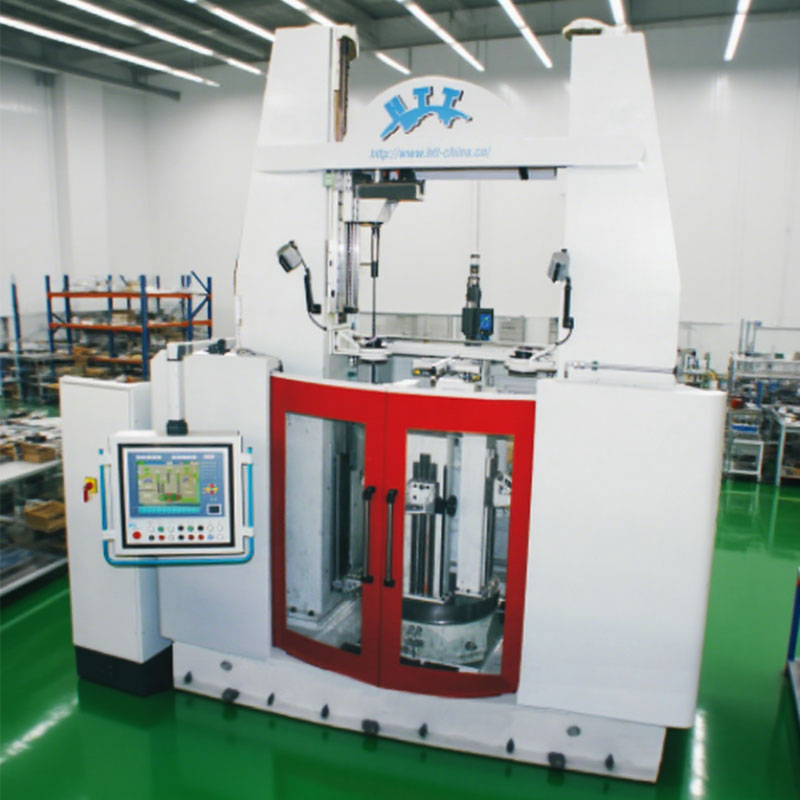

The structure of this machine tool is a vertical coarse fine honing double spindle plus a four-station CNC rotary workbench. The rough precision honing spindle rotates and is driven by a servo motor, and the spindle parts are all equipped with a floating structure. The honing head expansion mechanism is also driven by a servo motor to accurately control the radial expansion and contraction of the honing strip. The honing reciprocating mechanism is driven by a ball screw mechanical sliding table. There is an automatic measuring device between the coarse fine honing stations to ensure that the technical requirements of the parts are met after the final fine honing.
The new VHM series CNC vertical deep hole honing machine is one of the most advanced vertical honing machines on the market, with the following characteristics:
1. Suitable for precision inner hole processing fields such as hydraulic pneumatic, aviation, aerospace, automobile, and motorcycle industries.
2. Using servo control technology, it can achieve the requirements of dimensional accuracy IT5, surface roughness Ra0.1, roundness 0.0005mm, cylindricality 0.001mm/50mm, and the accuracy of the inclusion angle of the mesh.
3. The bed and columns adopt a steel plate burst-connecting structure with reinforced steel, and adopts a second annealing treatment, which has a stable and reliable structure and strong stability.
4. Programmable stroke control and machining cycle time control ensure that each workpiece has the same processing time and the results are consistent during mass production. Optimize abrasive performance through automatic feeding speed to ensure consistency between processing results and processing efficiency.
5. The machining efficiency of vertical deep-hole honing machines is much higher than that of internal circle grinders and other internal hole finishing equipment, and can reach 4-6 times that of internal circle honing process, greatly improving processing efficiency. In addition, better pore geometry and cross-mesh surfaces that act as oil film lubrication are also available.
6. Using imported brand NC system, a special honing control software HMI has been developed, which has a more vivid interface and is convenient to operate.
