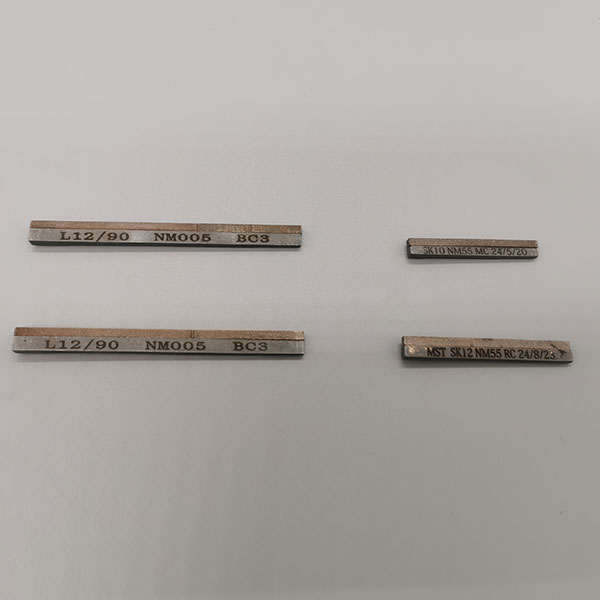

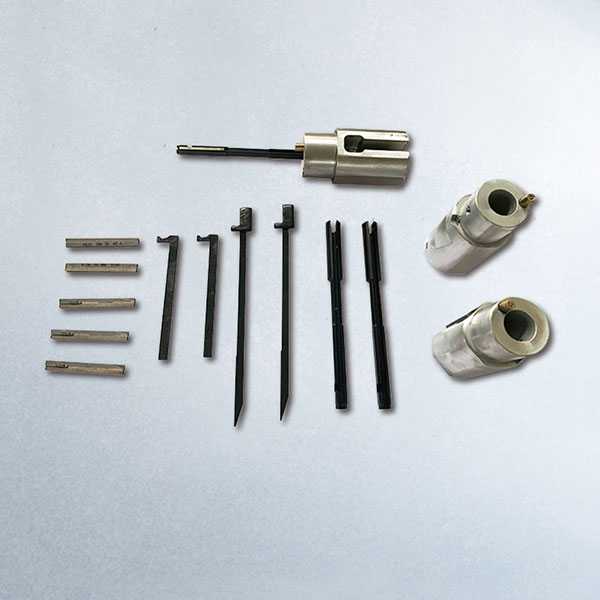

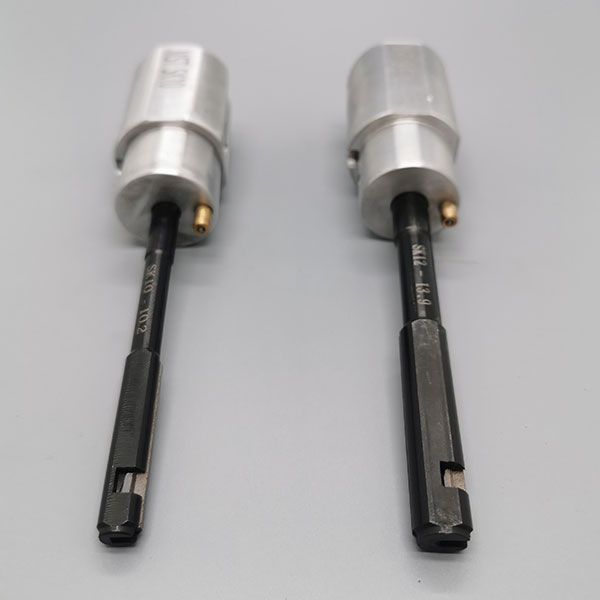

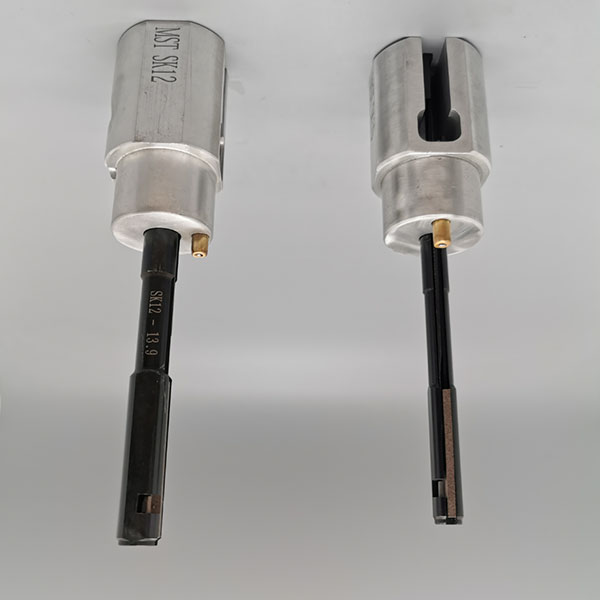

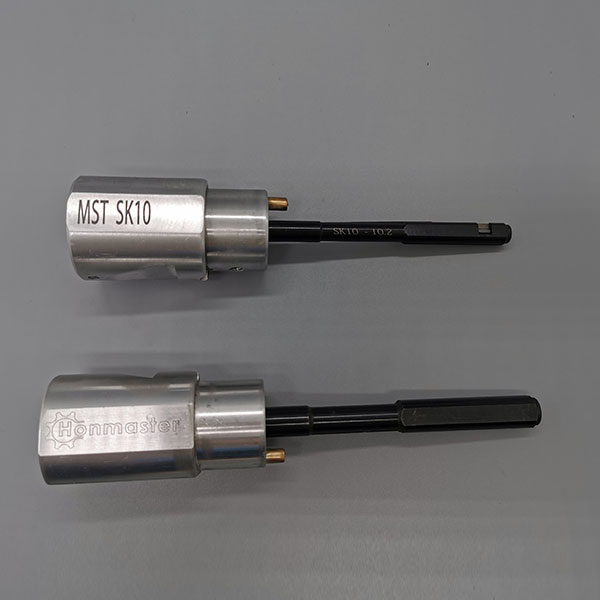

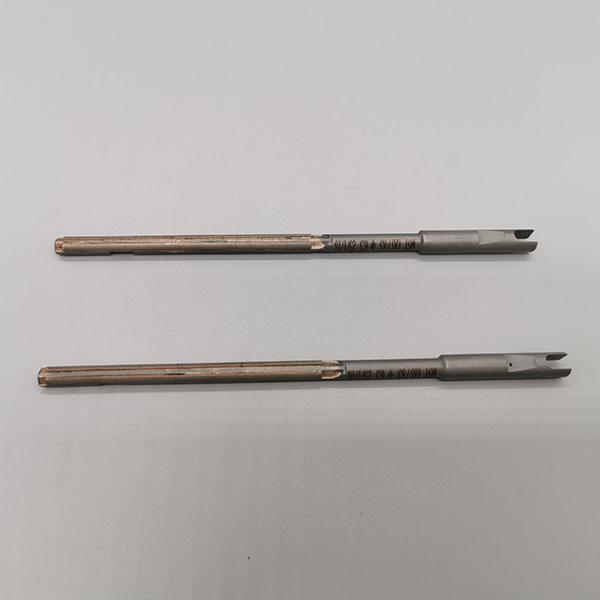

SHMT Horizontal Honing Tube & Accessories

Availability:



Honmaster horizontal honing rod can be used in honing machines of the same type of Shanneng, Rijin, and domestic products. It has excellent performance and can replace imported products of the same type. Widely used in sewing machinery, automotive parts and other high-precision parts.
Inquire

Honing tools are a tool that must be used in honing processing technology.

Honmaster horizontal honing rod can be used in honing machines of the same type of Shanneng, Rijin, and domestic products. It has excellent performance and can replace imported products of the same type. Widely used in sewing machinery, automotive parts and other high-precision parts.

◆ High precision and easy operation。

◆ Complete specifications and large stock.

◆ The roundness and cylindricality can reach μ level.

◆ Various non-standard specifications can be designed and produced according to user requirements.

Related Products

content is empty!

SHMT series technical parameters
Specifications and models	Processing pore size (mm)	Sand strip length (mm)	Processing hole depth (mm)
K4	φ2.9-5.89	26	13-35
K6	φ5.9-7.89	19	10-25
K8	φ7.9-9.89	32	16-45
K10	φ9.9-11.89	32	16-45
K12	φ11.9-15.89	44.5	22-60
K16	φ15.9-19.89	57	28-76
K20	φ19.9-29.89	63.5	32-85
SK6	φ5.9-7.89	36	18-50
SK8	φ7.9-9.89	36	18-50
SK10	φ9.9-11.89	45	22-60
SK12	φ11.9-15.89	55	27-73
BL6	φ5.9-7.89	36	18-50
BL8	φ7.9-9.89	57	28-76
BL10	φ9.9-11.89	57	28-76
BL12	φ11.9-15.89	70	35-100
